bcell2d< C, V > Class Template Reference

#include <bcell2d.hpp>

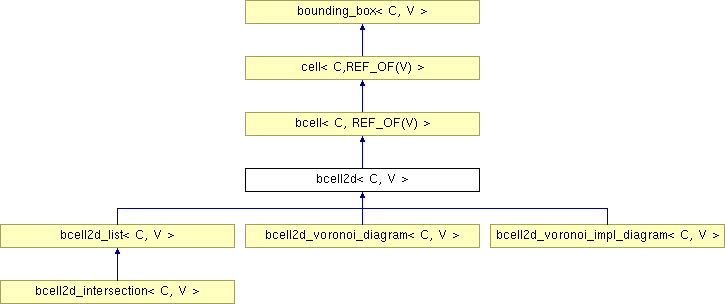

Inheritance diagram for bcell2d< C, V >:
bcell< C, REF_OF(V) > cell< C, V > bounding_box< C, V > bcell2d_list< C, V > bcell2d_voronoi_diagram< C, V > bcell2d_voronoi_impl_diagram< C, V > bcell2d_intersection< C, V >

List of all members.

Public Types

Public Member Functions

Public Attributes

Protected Attributes

Detailed Description

template<class C, class V>
class mmx::shape::bcell2d< C, V >

Definition at line 44 of file bcell2d.hpp.

Member Typedef Documentation

typedef bounding_box<C, REF_OF(V) > BoundingBox

Reimplemented from bcell< C, REF_OF(V) >.

Reimplemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_semialgebraic_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, and bcell2d_voronoi_site2d< C, V >.

Definition at line 52 of file bcell2d.hpp.

typedef bcell<C, REF_OF(V) > Cell

Reimplemented from bcell< C, REF_OF(V) >.

Reimplemented in bcell2d_algebraic_curve< C, V >, bcell2d_parametric_curve< C, V >, and bcell2d_voronoi_site2d< C, V >.

Definition at line 53 of file bcell2d.hpp.

typedef topology<C,V>::Edge Edge

Reimplemented in bcell2d_algebraic_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, and bcell2d_voronoi_site2d< C, V >.

Definition at line 51 of file bcell2d.hpp.

typedef topology<C,V>::Point Point

Reimplemented from bcell< C, REF_OF(V) >.

Reimplemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_semialgebraic_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, and bcell2d_voronoi_site2d< C, V >.

Definition at line 50 of file bcell2d.hpp.

typedef topology<C,V> Topology

Reimplemented from bcell< C, REF_OF(V) >.

Reimplemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, and bcell2d_voronoi_site2d< C, V >.

Definition at line 47 of file bcell2d.hpp.

Constructor & Destructor Documentation

bcell2d ( void   )  [inline]

Definition at line 209 of file bcell2d.hpp.

00209 { }

bcell2d ( const BoundingBox &  bx  )  [inline]

Definition at line 56 of file bcell2d.hpp.

00056 : Cell(bx) {}

bcell2d ( double  xmin,
double  xmax
) [inline]

Definition at line 57 of file bcell2d.hpp.

00057 : Cell(xmin,xmax) {};

bcell2d ( double  xmin,
double  xmax,
double  ymin,
double  ymax
) [inline]

Definition at line 58 of file bcell2d.hpp.

00058 : Cell(xmin,xmax,ymin,ymax) {} ;

~bcell2d ( void   )  [inline, virtual]

Definition at line 211 of file bcell2d.hpp.

00211 {}

Member Function Documentation

BoundingBox boundingBox (  )  const [inline, inherited]

Definition at line 71 of file cell.hpp.

00071 { return (BoundingBox)*this; }

void connect0 ( bcell2d< C, V > *  a,
bcell2d< C, V > *  b
) [inline]

Definition at line 273 of file bcell2d.hpp.

References mmx::shape::check_overlap(), bcell2d< C, V >::e_neighbors, bcell2d< C, V >::n_neighbors, bcell2d< C, V >::s_neighbors, Seq< C, R >::search(), SELF, and bcell2d< C, V >::w_neighbors.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), and bcell2d_intersection< C, V >::subdivide().

00274 {
00275     int i;
00276     bool flag;
00277
00278     //copy horizontally
00279     b->e_neighbors= this->e_neighbors ;
00280     foreach(SELF* cl,b->e_neighbors) {
00281         i= cl->w_neighbors.search(this);
00282         cl->w_neighbors[i]= b;
00283     }
00284     a->w_neighbors= this->w_neighbors ;
00285     foreach(SELF* cl,a->w_neighbors) {
00286         i= cl->e_neighbors.search(this);
00287         cl->e_neighbors[i]= a;
00288     }
00289
00290     //update vertically
00291     foreach(SELF* cl,this->s_neighbors) {
00292         flag=false;
00293         if ( check_overlap(cl,a,0))
00294         {
00295           //assert( cl->ymax()== a->ymin() );
00296             a->s_neighbors<< cl;
00297             i= cl->n_neighbors.search(this);
00298             cl->n_neighbors[i]= a;
00299             flag=true;
00300         }
00301         if ( check_overlap(cl,b,0) )
00302         {
00303           //assert( cl->ymax()== b->ymin() );
00304             b->s_neighbors<< cl;
00305             if (!flag)
00306             {
00307                 i= cl->n_neighbors.search(this);
00308                 cl->n_neighbors[i]= b;
00309             }
00310             else
00311                 cl->n_neighbors << b;
00312         }
00313     }
00314     foreach(SELF* cl,this->n_neighbors) {
00315         flag=false;
00316         if ( check_overlap(cl,a,0))
00317         {
00318             a->n_neighbors<< cl;
00319             i= cl->s_neighbors.search(this);
00320             cl->s_neighbors[i]= a;
00321             flag=true;
00322         }
00323         if ( check_overlap(cl,b,0) )
00324         {
00325             b->n_neighbors<< cl;
00326             if (!flag)
00327             {
00328                                         i= cl->s_neighbors.search(this);
00329                                         cl->s_neighbors[i]= b;
00330             }
00331             else
00332                                         cl->s_neighbors << b;
00333         }
00334   }
00335 }

void connect1 ( bcell2d< C, V > *  a,
bcell2d< C, V > *  b
) [inline]

Definition at line 338 of file bcell2d.hpp.

References mmx::shape::check_overlap(), bcell2d< C, V >::e_neighbors, bcell2d< C, V >::n_neighbors, bcell2d< C, V >::s_neighbors, Seq< C, R >::search(), SELF, and bcell2d< C, V >::w_neighbors.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), and bcell2d_intersection< C, V >::subdivide().

00339 {
00340     int i;
00341     bool flag;
00342
00343     //copy vertically
00344    a->s_neighbors= this->s_neighbors ;
00345      foreach(SELF* cl,a->s_neighbors) {
00346         i= cl->n_neighbors.search(this);
00347         cl->n_neighbors[i]= a;
00348     }
00349     b->n_neighbors= this->n_neighbors ;
00350     foreach(SELF* cl,b->n_neighbors) {
00351         i= cl->s_neighbors.search(this);
00352         cl->s_neighbors[i]= b;
00353     }
00354
00355     //update horizontally
00356     foreach(SELF* cl,this->w_neighbors) {
00357             flag=false;
00358             if ( check_overlap(cl,a,1))
00359             {
00360                 //assert( cl->xmax()== a->xmin() );
00361                 a->w_neighbors<< cl;
00362                 i= cl->e_neighbors.search(this);
00363                 cl->e_neighbors[i]= a;
00364                 flag=true;
00365             }
00366             if ( check_overlap(cl,b,1) )
00367             {
00368                 //assert( cl->xmax()== b->xmin() );
00369                 b->w_neighbors<< cl;
00370                 if (!flag)
00371                 {
00372                     i= cl->e_neighbors.search(this);
00373                     cl->e_neighbors[i]= b;
00374                 }
00375                 else
00376                     cl->e_neighbors << b;
00377             }
00378     }
00379     foreach(SELF* cl,this->e_neighbors) {
00380         flag=false;
00381         if ( check_overlap(cl,a,1))
00382         {
00383             a->e_neighbors<< cl;
00384             i= cl->w_neighbors.search(this);
00385             cl->w_neighbors[i]= a;
00386             flag=true;
00387         }
00388         if ( check_overlap(cl,b,1) )
00389         {
00390             b->e_neighbors<< cl;
00391             if (!flag)
00392             {
00393                 i= cl->w_neighbors.search(this);
00394                 cl->w_neighbors[i]= b;
00395             }
00396             else
00397                 cl->w_neighbors << b;
00398         }
00399     }
00400 }

bool contains ( double  x,
double  y,
double  z,
bool  strict = false
) [inline, inherited]

Definition at line 226 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00227 {
00228     if(!strict)
00229         return (((m_xmin <= x) && (x <= m_xmax))
00230                 &&   ((m_ymin <= y) && (y <= m_ymax))
00231                 &&   ((m_zmin <= z) && (z <= m_zmax)))  ;
00232     else
00233         return (((m_xmin <  x) && (x <  m_xmax))
00234                 &&   ((m_ymin <  y) && (y <  m_ymax))
00235                 &&   ((m_zmin <  z) && (z <  m_zmax)))  ;
00236 }

bool contains ( double  x,
double  y,
bool  strict = false
) [inline, inherited]

Definition at line 215 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, and bounding_box< C, V >::m_ymin.

00216 {
00217     if(!strict)
00218         return (((m_xmin <= x) && (x <= m_xmax))
00219                 &&   ((m_ymin <= y) && (y <= m_ymax))) ;
00220     else
00221         return (((m_xmin <  x) && (x <  m_xmax))
00222                 &&   ((m_ymin <  y) && (y <  m_ymax))) ;
00223 }

bool contains ( double  x,
bool  strict = false
) [inline, inherited]

Definition at line 206 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, and bounding_box< C, V >::m_xmin.

00207 {
00208     if(!strict)
00209         return (((m_xmin <= x) && (x <= m_xmax))) ;
00210     else
00211         return (((m_xmin <  x) && (x <  m_xmax))) ;
00212 }

void disconnect (  )  [inline]

Definition at line 414 of file bcell2d.hpp.

References Seq< C, R >::clear(), bcell2d< C, V >::e_neighbors, bcell2d< C, V >::n_neighbors, bcell2d< C, V >::s_neighbors, and bcell2d< C, V >::w_neighbors.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), and bcell2d_intersection< C, V >::subdivide().

00415 {
00416     this->e_neighbors.clear();
00417     this->w_neighbors.clear();
00418     this->n_neighbors.clear();
00419     this->s_neighbors.clear();
00420 }

virtual bool insert_regular ( Topology *   )  [pure virtual, inherited]

Implemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

virtual bool insert_singular ( Topology *   )  [pure virtual, inherited]

Implemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

bounding_box< C, V > * intersect ( const bounding_box< C, V > &  other  )  [inline, inherited]

Definition at line 319 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), SELF, bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

Referenced by bounding_box< double, V >::operator*().

00319                                  {
00320     SELF * bcell = new SELF ;
00321     bcell->set_xmin(mmxmax(this->xmin(), other.xmin())) ;
00322     bcell->set_xmax(mmxmin(this->xmax(), other.xmax())) ;
00323     bcell->set_ymin(mmxmax(this->ymin(), other.ymin())) ;
00324     bcell->set_ymax(mmxmin(this->ymax(), other.ymax())) ;
00325     bcell->set_zmin(mmxmax(this->zmin(), other.zmin())) ;
00326     bcell->set_zmax(mmxmin(this->zmax(), other.zmax())) ;
00327     return bcell ;
00328 }

void intersected ( bounding_box< C, V > *  other  )  [inline, inherited]

Definition at line 299 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::set_xmax(), bounding_box< C, V >::set_xmin(), bounding_box< C, V >::set_ymax(), bounding_box< C, V >::set_ymin(), bounding_box< C, V >::set_zmax(), bounding_box< C, V >::set_zmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00299                               {
00300     set_xmin(mmxmax(this->xmin(), other->xmin())) ;
00301     set_xmax(mmxmin(this->xmax(), other->xmax())) ;
00302     set_ymin(mmxmax(this->ymin(), other->ymin())) ;
00303     set_ymax(mmxmin(this->ymax(), other->ymax())) ;
00304     set_zmin(mmxmax(this->zmin(), other->zmin())) ;
00305     set_zmax(mmxmin(this->zmax(), other->zmax())) ;
00306 }

virtual Seq<Point *> intersections ( int  i  )  const [inline, virtual]

Reimplemented in bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Definition at line 98 of file bcell2d.hpp.

00098                                                  {
00099       switch(i) {
00100       case 0:
00101           return s_intersections;
00102       case 1:
00103           return e_intersections;
00104       case 2:
00105           return n_intersections.reversed();
00106       case 3:
00107           return w_intersections.reversed();
00108       default:
00109           return (Seq<Point *>());
00110       }
00111
00112   }

virtual Seq<Point *> intersections (  )  const [inline, virtual]

Reimplemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Definition at line 84 of file bcell2d.hpp.

Referenced by voronoi2dimpl< C, V >::insert_regular(), voronoi2d< C, V >::insert_regular(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), arrangement2d< C, V >::run(), and bcell2d< C, REF_OF(V) >::side().

00084                                             {
00085 //      std::cout<<"Intersection "
00086 //              << this->n_intersections.size()<<" "
00087 //              << this->s_intersections.size()<<" "
00088 //              << this->e_intersections.size()<<" "
00089 //              << this->w_intersections.size()<<std::endl;
00090       Seq<Point *> r;
00091       r<< this->s_intersections;
00092       r<< this->e_intersections;
00093       r<< this->n_intersections.reversed();
00094       r<< this->w_intersections.reversed();
00095   return ( r );
00096   }

bool intersects ( bounding_box< C, V > *  other,
bool  strict = true
) [inline, inherited]

Definition at line 239 of file bounding_box.hpp.

References bounding_box< C, V >::is0D(), bounding_box< C, V >::is1D(), bounding_box< C, V >::is2D(), bounding_box< C, V >::is3d(), mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00240 {
00241     if(this->is0D())
00242         return (this->xmin() == other->xmin()) ;
00243     else if(this->is1D())
00244         if(strict)
00245             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax()))) ;
00246         else
00247             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax()))) ;
00248     else if(this->is2D())
00249         if(strict)
00250             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax())) &&
00251                     (mmxmax(this->ymin(), other->ymin()) <  mmxmin(this->ymax(), other->ymax()))) ;
00252         else
00253             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax())) &&
00254                     (mmxmax(this->ymin(), other->ymin()) <= mmxmin(this->ymax(), other->ymax()))) ;
00255     else if(this->is3d()) {
00256         if(strict)
00257             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax())) &&
00258                     (mmxmax(this->ymin(), other->ymin()) <  mmxmin(this->ymax(), other->ymax())) &&
00259                     (mmxmax(this->zmin(), other->zmin()) <  mmxmin(this->zmax(), other->zmax()))) ;
00260         else
00261             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax())) &&
00262                     (mmxmax(this->ymin(), other->ymin()) <= mmxmin(this->ymax(), other->ymax())) &&
00263                     (mmxmax(this->zmin(), other->zmin()) <= mmxmin(this->zmax(), other->zmax()))) ;
00264     }
00265     return false ;
00266 }

bool is0D ( void   )  const [inline, inherited]

Definition at line 80 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00080 { return ((m_xmin == m_xmax) && (m_ymin == m_ymax) && (m_zmin == m_zmax)) ; }

bool is1D ( void   )  const [inline, inherited]

Definition at line 81 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00081 { return ((m_xmin != m_xmax) && (m_ymin == m_ymax) && (m_zmin == m_zmax)) ; }

bool is2D ( void   )  const [inline, inherited]

Definition at line 82 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00082 { return ((m_xmin != m_xmax) && (m_ymin != m_ymax) && (m_zmin == m_zmax)) ; }

bool is3d ( void   )  const [inline, inherited]

Definition at line 83 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00083 { return ((m_xmin != m_xmax) && (m_ymin != m_ymax) && (m_zmin != m_zmax)) ; }

virtual bool is_active ( void   )  [pure virtual, inherited]

Implemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_semialgebraic_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, bcell2d_voronoi_site2d< C, V >, and cell2d_algebraic_curve< C, V >.

Referenced by voronoi2d< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bcell_list< C, V >::is_active(), bcell3d_list< C, V >::is_active(), bcell2d_list< C, V >::is_active(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), arrangement2d< C, V >::run(), bcell2d_voronoi_diagram< C, V >::starting_point(), bcell2d_list< C, V >::starting_point(), bcell2d_intersection< C, V >::starting_point(), and bcell2d_list< C, V >::subdivide().

bool is_border ( void   )  const [inline]

Definition at line 114 of file bcell2d.hpp.

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), and arrangement2d< C, V >::run().

00114                                     {
00115       return (  this->s_neighbors.size()==0 ||
00116                 this->e_neighbors.size()==0 ||
00117                 this->n_neighbors.size()==0 ||
00118                 this->w_neighbors.size()==0  );
00119   }

bool is_corner ( void   )  const [inline]

Definition at line 423 of file bcell2d.hpp.

References bcell2d< C, V >::e_neighbors, bcell2d< C, V >::n_neighbors, bcell2d< C, V >::s_neighbors, Seq< C, R >::size(), and bcell2d< C, V >::w_neighbors.

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), and arrangement2d< C, V >::run().

00423                       {
00424
00425     if (this->s_neighbors.size()==0 &&
00426         this->e_neighbors.size()==0  )
00427         return true;
00428     else if (this->e_neighbors.size()==0 &&
00429              this->n_neighbors.size()==0 )
00430         return true;
00431     else if (this->n_neighbors.size()==0 &&
00432              this->w_neighbors.size()==0  )
00433         return true;
00434     else if (this->w_neighbors.size()==0 &&
00435              this->s_neighbors.size()==0 )
00436         return true;
00437
00438     return false;
00439 }

virtual bool is_intersected ( void   )  [pure virtual, inherited]

Implemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

virtual bool is_regular ( void   )  [pure virtual, inherited]

Implemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, bcell2d_voronoi_site2d< C, V >, bcell_list< C, V >, and cell2d_algebraic_curve< C, V >.

Referenced by voronoi2dimpl< C, V >::is_regular(), voronoi2d< C, V >::is_regular(), semialgebraic2d< C, V >::is_regular(), mesher2d< C, V >::is_regular(), bcell3d_list< C, V >::is_regular(), arrangement2d< C, V >::is_regular(), and arrangement2d< C, V >::run().

void join0 ( bcell2d< C, V > *  b  )  [inline]

Definition at line 259 of file bcell2d.hpp.

References bcell2d< C, V >::e_neighbors.

00260 {
00261     this->e_neighbors << b;
00262     b->w_neighbors << this;
00263 }

void join1 ( bcell2d< C, V > *  b  )  [inline]

Definition at line 266 of file bcell2d.hpp.

References bcell2d< C, V >::n_neighbors.

00267 {
00268     b->s_neighbors << this;
00269     this->n_neighbors << b;
00270 }

virtual unsigned nb_intersect ( void   )  const [inline, virtual]

Reimplemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Definition at line 77 of file bcell2d.hpp.

Referenced by semialgebraic2d< C, V >::run(), and arrangement2d< C, V >::run().

00077                                             {
00078     return (this->n_intersections.size()+
00079             this->s_intersections.size()+
00080             this->e_intersections.size()+
00081             this->w_intersections.size() );
00082   }

virtual bcell2d* neighbor ( Point *  p  )  [inline, virtual]

Reimplemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Definition at line 167 of file bcell2d.hpp.

00167                                          {
00168       foreach( bcell2d *c, this->s_neighbors     )
00169           if ( c->n_intersections.member(p) )
00170           {
00171               return c;
00172           }
00173       foreach( bcell2d *c, this->e_neighbors     )
00174           if ( c->w_intersections.member(p) )
00175           {
00176               return c;
00177           }
00178       foreach( bcell2d *c, this->n_neighbors     )
00179           if ( c->s_intersections.member(p) )
00180           {
00181               return c;
00182           }
00183       foreach( bcell2d *c, this->w_neighbors     )
00184           if ( c->e_intersections.member(p) )
00185           {
00186               return c;
00187           }
00188
00189       // Point p on boundary.
00190       //std::cout<<"... Point ("<<p->x()<<","<<p->y()<<") not found on neighbors of "<< this<<"("<<this->neighbors().size() <<")"<<std::endl;
00191       return NULL;
00192   }

virtual Seq<bcell2d *> neighbors (  )  [inline, virtual]

Definition at line 154 of file bcell2d.hpp.

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), and arrangement2d< C, V >::run().

00154                                         {
00155       Seq<bcell2d *> r;
00156       r<< this->s_neighbors;
00157       r<< this->e_neighbors;
00158       r<< this->n_neighbors;
00159       r<< this->w_neighbors;
00160   return ( r ); }

double & operator() ( unsigned  v,
unsigned  s
) [inline, inherited]

Definition at line 356 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00356                                        {
00357     switch(v) {
00358     case 0:
00359         if(s==0) return m_xmin; else return m_xmax;
00360     case 1:
00361         if(s==0) return m_ymin; else return m_ymax;
00362     default:
00363         if(s==0) return m_zmin; else return m_zmax;
00364     }
00365
00366 }

double operator() ( unsigned  v,
unsigned  s
) const [inline, inherited]

Definition at line 343 of file bounding_box.hpp.

References bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00343                                              {
00344     switch(v) {
00345     case 0:
00346         if(s==0) return xmin(); else return xmax();
00347     case 1:
00348         if(s==0) return ymin(); else return ymax();
00349     default:
00350         if(s==0) return zmin(); else return zmax();
00351     }
00352
00353 }

bounding_box<C,V>* operator* ( const bounding_box< C, V > &  other  )  [inline, inherited]

Definition at line 103 of file bounding_box.hpp.

00103 { return intersect(other) ; }

bounding_box<C,V>* operator+ ( const bounding_box< C, V > &  other  )  [inline, inherited]

Definition at line 104 of file bounding_box.hpp.

00104 { return     unite(other) ; }

virtual Point* pair ( Point *  p,
int &  sgn
) [pure virtual]

Implemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Referenced by voronoi2dimpl< C, V >::run(), and voronoi2d< C, V >::run().

void set_xmax ( double  x  )  [inline, inherited]

Definition at line 74 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00074 { this->m_xmax = x ; }

void set_xmin ( double  x  )  [inline, inherited]

Definition at line 73 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00073 { this->m_xmin = x ; }

void set_ymax ( double  y  )  [inline, inherited]

Definition at line 76 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00076 { this->m_ymax = y ; }

void set_ymin ( double  y  )  [inline, inherited]

Definition at line 75 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00075 { this->m_ymin = y ; }

void set_zmax ( double  z  )  [inline, inherited]

Definition at line 78 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), voronoi2dimpl< C, V >::run(), mesher2d< C, V >::set_input_bbox(), and bounding_box< C, V >::united().

00078 { this->m_zmax = z ; }

void set_zmin ( double  z  )  [inline, inherited]

Definition at line 77 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), voronoi2dimpl< C, V >::run(), mesher2d< C, V >::set_input_bbox(), and bounding_box< C, V >::united().

00077 { this->m_zmin = z ; }

int side ( Point *  p  )  [inline]

Definition at line 132 of file bcell2d.hpp.

00132                        {
00133       Seq<Point*> all;
00134       int s,i,a;
00135       s   = s_intersections.size();
00136       all = this->intersections();
00137       a   = all.size();
00138       i   = all.search(p);
00139       if (i==-1) return (-1);
00140       else return
00141          ( i<s                             ? 0 :
00142          ( i<s+(int)e_intersections.size() ? 1 :
00143          ( i<a-(int)w_intersections.size() ? 2 :
00144                                       3 )));
00145   }

double size ( void   )  [inline, inherited]

Definition at line 199 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, bounding_box< C, V >::m_zmin, and mmx::max().

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), mesher3d_shape< C, V >::run(), mesher3d_algebraic_curve< C, V >::run(), and mesher2d< C, V >::run().

00200 {
00201     //std::cout<<"Size "<<m_xmax<< " "<< m_xmin<<" "<< m_ymax<<" "<< m_ymin<<" "<< m_zmax<< " "<<m_zmin<<std::endl;
00202     return std::max(m_xmax-m_xmin, std::max(m_ymax-m_ymin, m_zmax-m_zmin)) ;
00203 }

void split_position ( int &  v,
double &  t
) [inline, virtual]

Implements bcell< C, REF_OF(V) >.

Reimplemented in bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_voronoi_diagram< C, V >, and bcell2d_voronoi_impl_diagram< C, V >.

Definition at line 197 of file bcell2d.hpp.

References bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), and bounding_box< C, V >::ymin().

00197                                       {
00198   double sx = (this->xmax()-this->xmin());
00199   double sy = (this->ymax()-this->ymin());
00200   if(sx<sy) {
00201     v=1;
00202     s=(this->ymax()+this->ymin())/2;
00203   } else {
00204     v=0;
00205     s=(this->xmax()+this->xmin())/2;
00206   }
00207 }

virtual Point* starting_point ( int  sgn  )  [pure virtual]

Implemented in bcell2d_algebraic_curve< C, V >, bcell2d_intersection< C, V >, bcell2d_list< C, V >, bcell2d_parametric_curve< C, V >, bcell2d_voronoi_diagram< C, V >, bcell2d_voronoi_impl_diagram< C, V >, and bcell2d_voronoi_site2d< C, V >.

Referenced by voronoi2dimpl< C, V >::run(), and voronoi2d< C, V >::run().

virtual void subdivide ( bcell< C , REF_OF(V) > *&  left,
bcell< C , REF_OF(V) > *&  right,
int  v,
double  s
) [pure virtual, inherited]
virtual int subdivide ( bcell< C , REF_OF(V) > *&  left,
bcell< C , REF_OF(V) > *&  right
) [virtual, inherited]
bounding_box< C, V > * unite ( bounding_box< C, V > *  other  )  [inline, inherited]

Definition at line 331 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), SELF, bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

Referenced by bounding_box< double, V >::operator+().

00331                         {
00332     SELF * bcell = new SELF ;
00333     bcell->set_xmin(mmxmin(this->xmin(), other->xmin())) ;
00334     bcell->set_xmax(mmxmax(this->xmax(), other->xmax())) ;
00335     bcell->set_ymin(mmxmin(this->ymin(), other->ymin())) ;
00336     bcell->set_ymax(mmxmax(this->ymax(), other->ymax())) ;
00337     bcell->set_zmin(mmxmin(this->zmin(), other->zmin())) ;
00338     bcell->set_zmax(mmxmax(this->zmax(), other->zmax())) ;
00339     return bcell ;
00340 }

void united ( bounding_box< C, V > *  other  )  [inline, inherited]

Definition at line 309 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::set_xmax(), bounding_box< C, V >::set_xmin(), bounding_box< C, V >::set_ymax(), bounding_box< C, V >::set_ymin(), bounding_box< C, V >::set_zmax(), bounding_box< C, V >::set_zmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00309                          {
00310     set_xmin(mmxmin(this->xmin(), other->xmin())) ;
00311     set_xmax(mmxmax(this->xmax(), other->xmax())) ;
00312     set_ymin(mmxmin(this->ymin(), other->ymin())) ;
00313     set_ymax(mmxmax(this->ymax(), other->ymax())) ;
00314     set_zmin(mmxmin(this->zmin(), other->zmin())) ;
00315     set_zmax(mmxmax(this->zmax(), other->zmax())) ;
00316 }

bool unites ( bounding_box< C, V > *  other,
bool  strict = true
) [inline, inherited]

Definition at line 269 of file bounding_box.hpp.

References bounding_box< C, V >::is0D(), bounding_box< C, V >::is1D(), bounding_box< C, V >::is2D(), bounding_box< C, V >::is3d(), mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00270 {
00271     if(this->is0D())
00272         return (this->xmin() == other->xmin()) ;
00273     else if(this->is1D()) {
00274         if(strict)
00275             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax()))) ;
00276         else
00277             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax()))) ;
00278     } else if(this->is2D()) {
00279         if(strict)
00280             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax())) &&
00281                     (mmxmin(this->ymin(), other->ymin()) <  mmxmax(this->ymax(), other->ymax()))) ;
00282         else
00283             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax())) &&
00284                     (mmxmin(this->ymin(), other->ymin()) <= mmxmax(this->ymax(), other->ymax()))) ;
00285     } else if(this->is3d()) {
00286         if(strict)
00287             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax())) &&
00288                     (mmxmin(this->ymin(), other->ymin()) <  mmxmax(this->ymax(), other->ymax())) &&
00289                     (mmxmin(this->zmin(), other->zmin()) <  mmxmax(this->zmax(), other->zmax()))) ;
00290         else
00291             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax())) &&
00292                     (mmxmin(this->ymin(), other->ymin()) <= mmxmax(this->ymax(), other->ymax())) &&
00293                     (mmxmin(this->zmin(), other->zmin()) <= mmxmax(this->zmax(), other->zmax()))) ;
00294     }
00295     return false ;
00296 }

double xmax ( void   )  const [inline, inherited]

Definition at line 63 of file bounding_box.hpp.

00063 { return m_xmax ; }

double xmax ( void   )  [inline, inherited]

Definition at line 56 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00056 { return m_xmax ; }

double xmin ( void   )  const [inline, inherited]

Definition at line 62 of file bounding_box.hpp.

00062 { return m_xmin ; }

double xmin ( void   )  [inline, inherited]

Definition at line 55 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), mmx::shape::operator<<(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00055 { return m_xmin ; }

double xsize ( void   )  const [inline, inherited]

Definition at line 69 of file bounding_box.hpp.

00069 { return m_xmax-m_xmin ; }

double ymax ( void   )  const [inline, inherited]

Definition at line 65 of file bounding_box.hpp.

00065 { return m_ymax ; }

double ymax ( void   )  [inline, inherited]

Definition at line 58 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00058 { return m_ymax ; }

double ymin ( void   )  const [inline, inherited]

Definition at line 64 of file bounding_box.hpp.

00064 { return m_ymin ; }

double ymin ( void   )  [inline, inherited]

Definition at line 57 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00057 { return m_ymin ; }

double ysize ( void   )  const [inline, inherited]

Definition at line 70 of file bounding_box.hpp.

00070 { return m_ymax-m_ymin ; }

double zmax ( void   )  const [inline, inherited]

Definition at line 67 of file bounding_box.hpp.

00067 { return m_zmax ; }

double zmax ( void   )  [inline, inherited]

Definition at line 60 of file bounding_box.hpp.

Referenced by bcell2d_voronoi_impl2d< C, V >::bcell2d_voronoi_impl2d(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), EdgeListBuilder< node_t >::computeCommonFace(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00060 { return m_zmax ; }

double zmin ( void   )  const [inline, inherited]

Definition at line 66 of file bounding_box.hpp.

00066 { return m_zmin ; }

double zmin ( void   )  [inline, inherited]

Definition at line 59 of file bounding_box.hpp.

Referenced by bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), EdgeListBuilder< node_t >::computeCommonFace(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00059 { return m_zmin ; }

double zsize ( void   )  const [inline, inherited]

Definition at line 71 of file bounding_box.hpp.

00071 { return m_zmax-m_zmin ; }

Member Data Documentation

Seq<Point *> e_intersections

Definition at line 123 of file bcell2d.hpp.

Referenced by bcell2d< C, REF_OF(V) >::intersections(), bcell2d< C, REF_OF(V) >::nb_intersect(), bcell2d< C, REF_OF(V) >::neighbor(), and bcell2d< C, REF_OF(V) >::side().

Seq<bcell2d *> e_neighbors

Definition at line 163 of file bcell2d.hpp.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), bcell2d< C, V >::connect0(), bcell2d< C, V >::connect1(), bcell2d< C, V >::disconnect(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bcell2d< C, REF_OF(V) >::is_border(), bcell2d< C, V >::is_corner(), bcell2d< C, V >::join0(), bcell2d_voronoi_impl_diagram< C, V >::neighbor(), bcell2d_voronoi_diagram< C, V >::neighbor(), bcell2d_list< C, V >::neighbor(), bcell2d_intersection< C, V >::neighbor(), bcell2d< C, REF_OF(V) >::neighbor(), bcell2d< C, REF_OF(V) >::neighbors(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), and arrangement2d< C, V >::run().

gNode<bcell2d*>* m_gnode

Definition at line 130 of file bcell2d.hpp.

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), and mesher2d< C, V >::run().

Seq<Point *> m_singular

Definition at line 126 of file bcell2d.hpp.

Referenced by bcell2d_list< C, V >::insert_regular(), bcell2d_intersection< C, V >::insert_regular(), bcell2d_voronoi_impl_diagram< C, V >::is_intersected(), bcell2d_voronoi_diagram< C, V >::is_intersected(), bcell2d_list< C, V >::is_intersected(), bcell2d_intersection< C, V >::is_intersected(), bcell2d_list< C, V >::is_regular(), bcell2d_intersection< C, V >::is_regular(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), and bcell2d_intersection< C, V >::subdivide().

double m_xmax [protected, inherited]

Definition at line 107 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_xmax(), bounding_box< C, V >::size(), bounding_box< double, V >::xmax(), and bounding_box< double, V >::xsize().

double m_xmin [protected, inherited]

Definition at line 107 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_xmin(), bounding_box< C, V >::size(), bounding_box< double, V >::xmin(), and bounding_box< double, V >::xsize().

double m_ymax [protected, inherited]

Definition at line 108 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_ymax(), bounding_box< C, V >::size(), bounding_box< double, V >::ymax(), and bounding_box< double, V >::ysize().

double m_ymin [protected, inherited]

Definition at line 108 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_ymin(), bounding_box< C, V >::size(), bounding_box< double, V >::ymin(), and bounding_box< double, V >::ysize().

double m_zmax [protected, inherited]

Definition at line 109 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_zmax(), bounding_box< C, V >::size(), bounding_box< double, V >::zmax(), and bounding_box< double, V >::zsize().

double m_zmin [protected, inherited]

Definition at line 109 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_zmin(), bounding_box< C, V >::size(), bounding_box< double, V >::zmin(), and bounding_box< double, V >::zsize().

Seq<Point *> n_intersections

Definition at line 124 of file bcell2d.hpp.

Referenced by bcell2d< C, REF_OF(V) >::intersections(), bcell2d< C, REF_OF(V) >::nb_intersect(), and bcell2d< C, REF_OF(V) >::neighbor().

Seq<bcell2d *> n_neighbors

Definition at line 164 of file bcell2d.hpp.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), bcell2d< C, V >::connect0(), bcell2d< C, V >::connect1(), bcell2d< C, V >::disconnect(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bcell2d< C, REF_OF(V) >::is_border(), bcell2d< C, V >::is_corner(), bcell2d< C, V >::join1(), bcell2d_voronoi_impl_diagram< C, V >::neighbor(), bcell2d_voronoi_diagram< C, V >::neighbor(), bcell2d_list< C, V >::neighbor(), bcell2d_intersection< C, V >::neighbor(), bcell2d< C, REF_OF(V) >::neighbor(), bcell2d< C, REF_OF(V) >::neighbors(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), and arrangement2d< C, V >::run().

Seq<Point *> s_intersections

Definition at line 122 of file bcell2d.hpp.

Referenced by bcell2d< C, REF_OF(V) >::intersections(), bcell2d< C, REF_OF(V) >::nb_intersect(), bcell2d< C, REF_OF(V) >::neighbor(), and bcell2d< C, REF_OF(V) >::side().

Seq<bcell2d *> s_neighbors

Definition at line 162 of file bcell2d.hpp.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), bcell2d< C, V >::connect0(), bcell2d< C, V >::connect1(), bcell2d< C, V >::disconnect(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bcell2d< C, REF_OF(V) >::is_border(), bcell2d< C, V >::is_corner(), bcell2d_voronoi_impl_diagram< C, V >::neighbor(), bcell2d_voronoi_diagram< C, V >::neighbor(), bcell2d_list< C, V >::neighbor(), bcell2d_intersection< C, V >::neighbor(), bcell2d< C, REF_OF(V) >::neighbor(), bcell2d< C, REF_OF(V) >::neighbors(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), and arrangement2d< C, V >::run().

Seq<Point *> w_intersections

Definition at line 125 of file bcell2d.hpp.

Referenced by bcell2d< C, REF_OF(V) >::intersections(), bcell2d< C, REF_OF(V) >::nb_intersect(), bcell2d< C, REF_OF(V) >::neighbor(), and bcell2d< C, REF_OF(V) >::side().

Seq<bcell2d *> w_neighbors

Definition at line 165 of file bcell2d.hpp.

Referenced by bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), bcell2d< C, V >::connect0(), bcell2d< C, V >::connect1(), bcell2d< C, V >::disconnect(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bcell2d< C, REF_OF(V) >::is_border(), bcell2d< C, V >::is_corner(), bcell2d_voronoi_impl_diagram< C, V >::neighbor(), bcell2d_voronoi_diagram< C, V >::neighbor(), bcell2d_list< C, V >::neighbor(), bcell2d_intersection< C, V >::neighbor(), bcell2d< C, REF_OF(V) >::neighbor(), bcell2d< C, REF_OF(V) >::neighbors(), voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), semialgebraic2d< C, V >::run(), mesher2d< C, V >::run(), and arrangement2d< C, V >::run().

The documentation for this class was generated from the following file:
Generated on 6 Dec 2012 for shape by  doxygen 1.6.1
