bounding_box< C, V > Class Template Reference

#include <bounding_box.hpp>

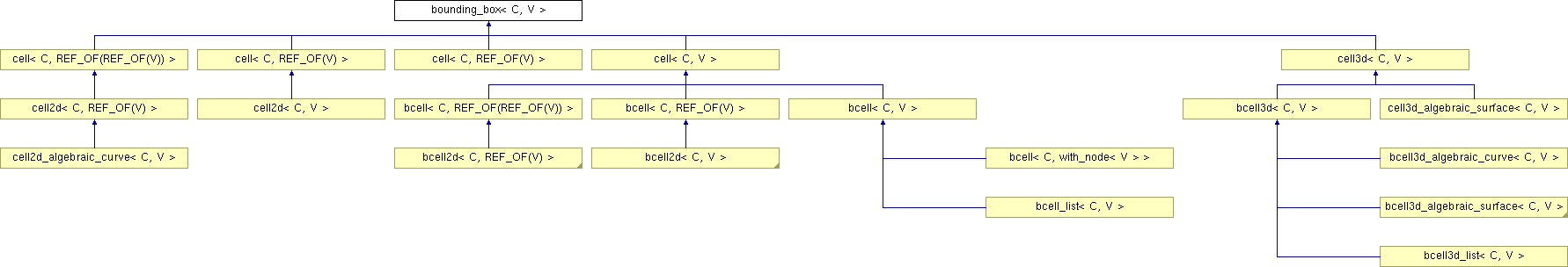

Inheritance diagram for bounding_box< C, V >:
cell< C, REF_OF(REF_OF(V)) > cell< C, REF_OF(V) > cell< C, REF_OF(V) > cell< C, V > cell3d< C, V > cell2d< C, REF_OF(V) > cell2d< C, V > bcell< C, REF_OF(REF_OF(V)) > bcell< C, REF_OF(V) > bcell< C, V > bcell3d< C, V > cell3d_algebraic_surface< C, V > cell2d_algebraic_curve< C, V > bcell2d< C, REF_OF(V) > bcell2d< C, V > bcell< C, with_node< V > > bcell_list< C, V > bcell3d_algebraic_curve< C, V > bcell3d_algebraic_surface< C, V > bcell3d_list< C, V >

List of all members.

Public Member Functions

Protected Attributes

Detailed Description

template<class C, class V = default_env>
class mmx::shape::bounding_box< C, V >

Definition at line 45 of file bounding_box.hpp.

Constructor & Destructor Documentation

bounding_box ( void   )  [inline]

Definition at line 147 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00148 {
00149     this->m_xmin = 0.0 ;
00150     this->m_xmax = 1.0 ;
00151     this->m_ymin = 0.0 ;
00152     this->m_ymax = 1.0 ;
00153     this->m_zmin = 0.0 ;
00154     this->m_zmax = 1.0 ;
00155 }

bounding_box ( double  xmin,
double  xmax
) [inline]

Definition at line 157 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00158 {
00159     this->m_xmin = xmin ;
00160     this->m_xmax = xmax ;
00161     this->m_ymin = 0.0 ;
00162     this->m_ymax = 0.0 ;
00163     this->m_zmin = 0.0 ;
00164     this->m_zmax = 0.0 ;
00165 }

bounding_box ( double  xmin,
double  xmax,
double  ymin,
double  ymax
) [inline]

Definition at line 167 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00168 {
00169     this->m_xmin = xmin ;
00170     this->m_xmax = xmax ;
00171     this->m_ymin = ymin ;
00172     this->m_ymax = ymax ;
00173     this->m_zmin = 0.0 ;
00174     this->m_zmax = 0.0 ;
00175 }

bounding_box ( double  xmin,
double  xmax,
double  ymin,
double  ymax,
double  zmin,
double  zmax
) [inline]

Definition at line 177 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00178 {
00179     this->m_xmin = xmin ;
00180     this->m_xmax = xmax ;
00181     this->m_ymin = ymin ;
00182     this->m_ymax = ymax ;
00183     this->m_zmin = zmin ;
00184     this->m_zmax = zmax ;
00185 }

bounding_box ( const bounding_box< C, V > &  bx  )  [inline]

Definition at line 187 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00188 {
00189     m_xmin = bx.xmin() ;
00190     m_xmax = bx.xmax() ;
00191     m_ymin = bx.ymin() ;
00192     m_ymax = bx.ymax() ;
00193     m_zmin = bx.zmin() ;
00194     m_zmax = bx.zmax() ;
00195 }

~bounding_box ( void   )  [inline]

Definition at line 53 of file bounding_box.hpp.

00053 {};

Member Function Documentation

bool contains ( double  x,
double  y,
double  z,
bool  strict = false
) [inline]

Definition at line 226 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00227 {
00228     if(!strict)
00229         return (((m_xmin <= x) && (x <= m_xmax))
00230                 &&   ((m_ymin <= y) && (y <= m_ymax))
00231                 &&   ((m_zmin <= z) && (z <= m_zmax)))  ;
00232     else
00233         return (((m_xmin <  x) && (x <  m_xmax))
00234                 &&   ((m_ymin <  y) && (y <  m_ymax))
00235                 &&   ((m_zmin <  z) && (z <  m_zmax)))  ;
00236 }

bool contains ( double  x,
double  y,
bool  strict = false
) [inline]

Definition at line 215 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, and bounding_box< C, V >::m_ymin.

00216 {
00217     if(!strict)
00218         return (((m_xmin <= x) && (x <= m_xmax))
00219                 &&   ((m_ymin <= y) && (y <= m_ymax))) ;
00220     else
00221         return (((m_xmin <  x) && (x <  m_xmax))
00222                 &&   ((m_ymin <  y) && (y <  m_ymax))) ;
00223 }

bool contains ( double  x,
bool  strict = false
) [inline]

Definition at line 206 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, and bounding_box< C, V >::m_xmin.

00207 {
00208     if(!strict)
00209         return (((m_xmin <= x) && (x <= m_xmax))) ;
00210     else
00211         return (((m_xmin <  x) && (x <  m_xmax))) ;
00212 }

bounding_box< C, V > * intersect ( const bounding_box< C, V > &  other  )  [inline]

Definition at line 319 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), SELF, bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

Referenced by bounding_box< double, V >::operator*().

00319                                  {
00320     SELF * bcell = new SELF ;
00321     bcell->set_xmin(mmxmax(this->xmin(), other.xmin())) ;
00322     bcell->set_xmax(mmxmin(this->xmax(), other.xmax())) ;
00323     bcell->set_ymin(mmxmax(this->ymin(), other.ymin())) ;
00324     bcell->set_ymax(mmxmin(this->ymax(), other.ymax())) ;
00325     bcell->set_zmin(mmxmax(this->zmin(), other.zmin())) ;
00326     bcell->set_zmax(mmxmin(this->zmax(), other.zmax())) ;
00327     return bcell ;
00328 }

void intersected ( bounding_box< C, V > *  other  )  [inline]

Definition at line 299 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::set_xmax(), bounding_box< C, V >::set_xmin(), bounding_box< C, V >::set_ymax(), bounding_box< C, V >::set_ymin(), bounding_box< C, V >::set_zmax(), bounding_box< C, V >::set_zmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00299                               {
00300     set_xmin(mmxmax(this->xmin(), other->xmin())) ;
00301     set_xmax(mmxmin(this->xmax(), other->xmax())) ;
00302     set_ymin(mmxmax(this->ymin(), other->ymin())) ;
00303     set_ymax(mmxmin(this->ymax(), other->ymax())) ;
00304     set_zmin(mmxmax(this->zmin(), other->zmin())) ;
00305     set_zmax(mmxmin(this->zmax(), other->zmax())) ;
00306 }

bool intersects ( bounding_box< C, V > *  other,
bool  strict = true
) [inline]

Definition at line 239 of file bounding_box.hpp.

References bounding_box< C, V >::is0D(), bounding_box< C, V >::is1D(), bounding_box< C, V >::is2D(), bounding_box< C, V >::is3d(), mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00240 {
00241     if(this->is0D())
00242         return (this->xmin() == other->xmin()) ;
00243     else if(this->is1D())
00244         if(strict)
00245             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax()))) ;
00246         else
00247             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax()))) ;
00248     else if(this->is2D())
00249         if(strict)
00250             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax())) &&
00251                     (mmxmax(this->ymin(), other->ymin()) <  mmxmin(this->ymax(), other->ymax()))) ;
00252         else
00253             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax())) &&
00254                     (mmxmax(this->ymin(), other->ymin()) <= mmxmin(this->ymax(), other->ymax()))) ;
00255     else if(this->is3d()) {
00256         if(strict)
00257             return ((mmxmax(this->xmin(), other->xmin()) <  mmxmin(this->xmax(), other->xmax())) &&
00258                     (mmxmax(this->ymin(), other->ymin()) <  mmxmin(this->ymax(), other->ymax())) &&
00259                     (mmxmax(this->zmin(), other->zmin()) <  mmxmin(this->zmax(), other->zmax()))) ;
00260         else
00261             return ((mmxmax(this->xmin(), other->xmin()) <= mmxmin(this->xmax(), other->xmax())) &&
00262                     (mmxmax(this->ymin(), other->ymin()) <= mmxmin(this->ymax(), other->ymax())) &&
00263                     (mmxmax(this->zmin(), other->zmin()) <= mmxmin(this->zmax(), other->zmax()))) ;
00264     }
00265     return false ;
00266 }

bool is0D ( void   )  const [inline]

Definition at line 80 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00080 { return ((m_xmin == m_xmax) && (m_ymin == m_ymax) && (m_zmin == m_zmax)) ; }

bool is1D ( void   )  const [inline]

Definition at line 81 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00081 { return ((m_xmin != m_xmax) && (m_ymin == m_ymax) && (m_zmin == m_zmax)) ; }

bool is2D ( void   )  const [inline]

Definition at line 82 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00082 { return ((m_xmin != m_xmax) && (m_ymin != m_ymax) && (m_zmin == m_zmax)) ; }

bool is3d ( void   )  const [inline]

Definition at line 83 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersects(), and bounding_box< C, V >::unites().

00083 { return ((m_xmin != m_xmax) && (m_ymin != m_ymax) && (m_zmin != m_zmax)) ; }

double & operator() ( unsigned  v,
unsigned  s
) [inline]

Definition at line 356 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, and bounding_box< C, V >::m_zmin.

00356                                        {
00357     switch(v) {
00358     case 0:
00359         if(s==0) return m_xmin; else return m_xmax;
00360     case 1:
00361         if(s==0) return m_ymin; else return m_ymax;
00362     default:
00363         if(s==0) return m_zmin; else return m_zmax;
00364     }
00365
00366 }

double operator() ( unsigned  v,
unsigned  s
) const [inline]

Definition at line 343 of file bounding_box.hpp.

References bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00343                                              {
00344     switch(v) {
00345     case 0:
00346         if(s==0) return xmin(); else return xmax();
00347     case 1:
00348         if(s==0) return ymin(); else return ymax();
00349     default:
00350         if(s==0) return zmin(); else return zmax();
00351     }
00352
00353 }

bounding_box<C,V>* operator* ( const bounding_box< C, V > &  other  )  [inline]

Definition at line 103 of file bounding_box.hpp.

00103 { return intersect(other) ; }

bounding_box<C,V>* operator+ ( const bounding_box< C, V > &  other  )  [inline]

Definition at line 104 of file bounding_box.hpp.

00104 { return     unite(other) ; }

void set_xmax ( double  x  )  [inline]

Definition at line 74 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00074 { this->m_xmax = x ; }

void set_xmin ( double  x  )  [inline]

Definition at line 73 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00073 { this->m_xmin = x ; }

void set_ymax ( double  y  )  [inline]

Definition at line 76 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00076 { this->m_ymax = y ; }

void set_ymin ( double  y  )  [inline]

Definition at line 75 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), and bounding_box< C, V >::united().

00075 { this->m_ymin = y ; }

void set_zmax ( double  z  )  [inline]

Definition at line 78 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), voronoi2dimpl< C, V >::run(), mesher2d< C, V >::set_input_bbox(), and bounding_box< C, V >::united().

00078 { this->m_zmax = z ; }

void set_zmin ( double  z  )  [inline]

Definition at line 77 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::intersected(), voronoi2dimpl< C, V >::run(), mesher2d< C, V >::set_input_bbox(), and bounding_box< C, V >::united().

00077 { this->m_zmin = z ; }

double size ( void   )  [inline]

Definition at line 199 of file bounding_box.hpp.

References bounding_box< C, V >::m_xmax, bounding_box< C, V >::m_xmin, bounding_box< C, V >::m_ymax, bounding_box< C, V >::m_ymin, bounding_box< C, V >::m_zmax, bounding_box< C, V >::m_zmin, and mmx::max().

Referenced by voronoi2dimpl< C, V >::run(), voronoi2d< C, V >::run(), mesher3d_shape< C, V >::run(), mesher3d_algebraic_curve< C, V >::run(), and mesher2d< C, V >::run().

00200 {
00201     //std::cout<<"Size "<<m_xmax<< " "<< m_xmin<<" "<< m_ymax<<" "<< m_ymin<<" "<< m_zmax<< " "<<m_zmin<<std::endl;
00202     return std::max(m_xmax-m_xmin, std::max(m_ymax-m_ymin, m_zmax-m_zmin)) ;
00203 }

bounding_box< C, V > * unite ( bounding_box< C, V > *  other  )  [inline]

Definition at line 331 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), SELF, bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

Referenced by bounding_box< double, V >::operator+().

00331                         {
00332     SELF * bcell = new SELF ;
00333     bcell->set_xmin(mmxmin(this->xmin(), other->xmin())) ;
00334     bcell->set_xmax(mmxmax(this->xmax(), other->xmax())) ;
00335     bcell->set_ymin(mmxmin(this->ymin(), other->ymin())) ;
00336     bcell->set_ymax(mmxmax(this->ymax(), other->ymax())) ;
00337     bcell->set_zmin(mmxmin(this->zmin(), other->zmin())) ;
00338     bcell->set_zmax(mmxmax(this->zmax(), other->zmax())) ;
00339     return bcell ;
00340 }

void united ( bounding_box< C, V > *  other  )  [inline]

Definition at line 309 of file bounding_box.hpp.

References mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::set_xmax(), bounding_box< C, V >::set_xmin(), bounding_box< C, V >::set_ymax(), bounding_box< C, V >::set_ymin(), bounding_box< C, V >::set_zmax(), bounding_box< C, V >::set_zmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00309                          {
00310     set_xmin(mmxmin(this->xmin(), other->xmin())) ;
00311     set_xmax(mmxmax(this->xmax(), other->xmax())) ;
00312     set_ymin(mmxmin(this->ymin(), other->ymin())) ;
00313     set_ymax(mmxmax(this->ymax(), other->ymax())) ;
00314     set_zmin(mmxmin(this->zmin(), other->zmin())) ;
00315     set_zmax(mmxmax(this->zmax(), other->zmax())) ;
00316 }

bool unites ( bounding_box< C, V > *  other,
bool  strict = true
) [inline]

Definition at line 269 of file bounding_box.hpp.

References bounding_box< C, V >::is0D(), bounding_box< C, V >::is1D(), bounding_box< C, V >::is2D(), bounding_box< C, V >::is3d(), mmx::shape::mmxmax(), mmx::shape::mmxmin(), bounding_box< C, V >::xmax(), bounding_box< C, V >::xmin(), bounding_box< C, V >::ymax(), bounding_box< C, V >::ymin(), bounding_box< C, V >::zmax(), and bounding_box< C, V >::zmin().

00270 {
00271     if(this->is0D())
00272         return (this->xmin() == other->xmin()) ;
00273     else if(this->is1D()) {
00274         if(strict)
00275             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax()))) ;
00276         else
00277             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax()))) ;
00278     } else if(this->is2D()) {
00279         if(strict)
00280             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax())) &&
00281                     (mmxmin(this->ymin(), other->ymin()) <  mmxmax(this->ymax(), other->ymax()))) ;
00282         else
00283             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax())) &&
00284                     (mmxmin(this->ymin(), other->ymin()) <= mmxmax(this->ymax(), other->ymax()))) ;
00285     } else if(this->is3d()) {
00286         if(strict)
00287             return ((mmxmin(this->xmin(), other->xmin()) <  mmxmax(this->xmax(), other->xmax())) &&
00288                     (mmxmin(this->ymin(), other->ymin()) <  mmxmax(this->ymax(), other->ymax())) &&
00289                     (mmxmin(this->zmin(), other->zmin()) <  mmxmax(this->zmax(), other->zmax()))) ;
00290         else
00291             return ((mmxmin(this->xmin(), other->xmin()) <= mmxmax(this->xmax(), other->xmax())) &&
00292                     (mmxmin(this->ymin(), other->ymin()) <= mmxmax(this->ymax(), other->ymax())) &&
00293                     (mmxmin(this->zmin(), other->zmin()) <= mmxmax(this->zmax(), other->zmax()))) ;
00294     }
00295     return false ;
00296 }

double xmax ( void   )  const [inline]

Definition at line 63 of file bounding_box.hpp.

00063 { return m_xmax ; }

double xmax ( void   )  [inline]

Definition at line 56 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00056 { return m_xmax ; }

double xmin ( void   )  const [inline]

Definition at line 62 of file bounding_box.hpp.

00062 { return m_xmin ; }

double xmin ( void   )  [inline]

Definition at line 55 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), mmx::shape::operator<<(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00055 { return m_xmin ; }

double xsize ( void   )  const [inline]

Definition at line 69 of file bounding_box.hpp.

00069 { return m_xmax-m_xmin ; }

double ymax ( void   )  const [inline]

Definition at line 65 of file bounding_box.hpp.

00065 { return m_ymax ; }

double ymax ( void   )  [inline]

Definition at line 58 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00058 { return m_ymax ; }

double ymin ( void   )  const [inline]

Definition at line 64 of file bounding_box.hpp.

00064 { return m_ymin ; }

double ymin ( void   )  [inline]

Definition at line 57 of file bounding_box.hpp.

Referenced by bcell2d_algebraic_curve< C, V >::bcell2d_algebraic_curve(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell2d_algebraic_curve< C, V >::cell2d_algebraic_curve(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), cell2d< C, REF_OF(V) >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), bcell2d_voronoi_impl_diagram< C, V >::compute_boundary(), bcell2d_voronoi_diagram< C, V >::compute_boundary(), EdgeListBuilder< node_t >::computeCommonFace(), solver_implicit< C, V >::extremal(), cell2d_algebraic_curve< C, V >::gradient(), bcell2d_voronoi_site2d< C, V >::gradient(), bcell2d_voronoi_impl2d< C, V >::gradient(), bcell2d_algebraic_curve< C, V >::gradient(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bcell2d_voronoi_impl_diagram< C, V >::insert_regular(), bcell2d_voronoi_diagram< C, V >::insert_regular(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), solver_implicit< C, V >::intersection(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), cell2d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), solver_implicit< C, V >::singular(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), cell2d_algebraic_curve< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell2d_voronoi_impl_diagram< C, V >::split_position(), bcell2d_voronoi_diagram< C, V >::split_position(), bcell2d_list< C, V >::split_position(), bcell2d_intersection< C, V >::split_position(), bcell2d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell2d_voronoi_impl_diagram< C, V >::subdivide(), bcell2d_voronoi_diagram< C, V >::subdivide(), bcell2d_list< C, V >::subdivide(), bcell2d_intersection< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), voronoi_site2d< C, V >::upper_bound(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00057 { return m_ymin ; }

double ysize ( void   )  const [inline]

Definition at line 70 of file bounding_box.hpp.

00070 { return m_ymax-m_ymin ; }

double zmax ( void   )  const [inline]

Definition at line 67 of file bounding_box.hpp.

00067 { return m_zmax ; }

double zmax ( void   )  [inline]

Definition at line 60 of file bounding_box.hpp.

Referenced by bcell2d_voronoi_impl2d< C, V >::bcell2d_voronoi_impl2d(), bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), EdgeListBuilder< node_t >::computeCommonFace(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00060 { return m_zmax ; }

double zmin ( void   )  const [inline]

Definition at line 66 of file bounding_box.hpp.

00066 { return m_zmin ; }

double zmin ( void   )  [inline]

Definition at line 59 of file bounding_box.hpp.

Referenced by bcell3d_algebraic_curve< C, V >::bcell3d_algebraic_curve(), bcell3d_algebraic_surface< C, V >::bcell3d_algebraic_surface(), cell3d_algebraic_surface< C, V >::cell3d_algebraic_surface(), cell3d< C, V >::center(), bcell3d_algebraic_surface< C, V >::center(), bcell3d< C, V >::center(), EdgeListBuilder< node_t >::computeCommonFace(), topology< C, V >::insert(), mesher3d_algebraic_curve< C, V >::insert(), bounding_box< C, V >::intersect(), bounding_box< C, V >::intersected(), bounding_box< C, V >::intersects(), cell3d< C, V >::is_adjacent(), bounding_box< C, V >::operator()(), cell3d_algebraic_surface< C, V >::point(), cell3d_algebraic_surface< C, V >::split(), bcell3d_algebraic_surface< C, V >::split(), cell3d< C, V >::split_position(), bcell3d_list< C, V >::split_position(), bcell3d< C, V >::split_position(), bcell3d_algebraic_curve< C, V >::subdivide(), bcell3d_algebraic_surface< C, V >::topology_regular(), bounding_box< C, V >::unite(), bounding_box< C, V >::united(), bounding_box< C, V >::unites(), cell3d_algebraic_surface< C, V >::value(), and EdgeListBuilder< node_t >::verifyFaceList().

00059 { return m_zmin ; }

double zsize ( void   )  const [inline]

Definition at line 71 of file bounding_box.hpp.

00071 { return m_zmax-m_zmin ; }

Member Data Documentation

double m_xmax [protected]

Definition at line 107 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_xmax(), bounding_box< C, V >::size(), bounding_box< double, V >::xmax(), and bounding_box< double, V >::xsize().

double m_xmin [protected]

Definition at line 107 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_xmin(), bounding_box< C, V >::size(), bounding_box< double, V >::xmin(), and bounding_box< double, V >::xsize().

double m_ymax [protected]

Definition at line 108 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_ymax(), bounding_box< C, V >::size(), bounding_box< double, V >::ymax(), and bounding_box< double, V >::ysize().

double m_ymin [protected]

Definition at line 108 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_ymin(), bounding_box< C, V >::size(), bounding_box< double, V >::ymin(), and bounding_box< double, V >::ysize().

double m_zmax [protected]

Definition at line 109 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_zmax(), bounding_box< C, V >::size(), bounding_box< double, V >::zmax(), and bounding_box< double, V >::zsize().

double m_zmin [protected]

Definition at line 109 of file bounding_box.hpp.

Referenced by bounding_box< C, V >::bounding_box(), bounding_box< C, V >::contains(), bounding_box< double, V >::is0D(), bounding_box< double, V >::is1D(), bounding_box< double, V >::is2D(), bounding_box< double, V >::is3d(), bounding_box< C, V >::operator()(), bounding_box< double, V >::set_zmin(), bounding_box< C, V >::size(), bounding_box< double, V >::zmin(), and bounding_box< double, V >::zsize().

The documentation for this class was generated from the following file:
Generated on 6 Dec 2012 for shape by  doxygen 1.6.1
